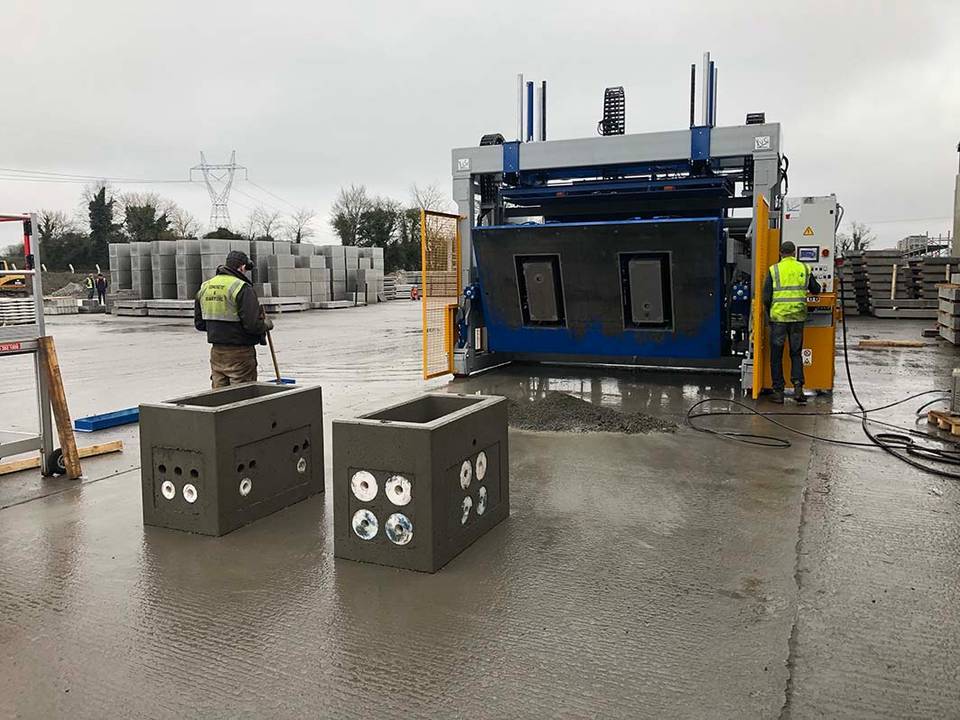

Imer Oru Far East offers vibroforming machines to produce moulds for precast concrete elements. Using VibroCast technology, these machines and moulds are highly customised based on the customers’ needs.

The moulds can be manufactured in different sizes, with endless solutions to meet a variety of requirements. The final products are concrete elements suitable for use in construction and industrial sectors, such as concrete slabs, road kerbs, highway barriers, concrete fences, concrete pipes and paving blocks, to name just a few.

The process is quite simple: the mould is first filled with concrete and then vibrated to obtain the self-compaction of the material. Once set, the mould is turned over to release the finished product directly on the floor. With the VibroCast technology, concrete elements can achieve a high compressive strength (HCS) of up to 60-70 MPa.

The vibroforming machines are available in four models: VC100, VC200, VC300 and VC400. They are now being introduced to the Asian market and Imer Oru Far East welcomes potential distributors in the region. The company has recently sold one model to a customer in the Philippines.

The VC100 can lift concrete elements up to 2,000 kg with a maximum dimension of 1,400 x 1,400 x 1,050 mm, while the VC200 is designed for concrete elements up to 3,000 kg with a maximum dimension of 2,000 x 2,200 x 1,350 mm.

The VC300 is ideal for concrete elements up to 3,600 kg with a maximum dimension of 3,000 x 2,200 x 1,350 mm. Meanwhile, the VC400 can lift concrete elements up to 4,000 kg with a maximum dimension of 4,000 x 2,200 x 1,350 mm.

The vibroforming machines are equipped with various functions: tele-assistance, automatic lubricating system, double tilting mould motor, adjustable rotation mould on tilting cylinders, quick couplings for the replacement of the moulds without oil leaks, double hydraulic pump for oil separation machine/mould, fifth rotation wheel with separated and dedicated engine and gear, bronze-aluminium bushes, and feed drawer covering 2,200 mm without the need for additional arms or extra cylinders.

Optional features include: rack-work drawer system, hydraulic oil heating system, hydraulic oil cooling system, electric winch to lift platforms or steel cages, smoothing device, concrete bucket, and more.

Simple to operate with user-friendly features, these vibroforming machines are compact and do not require a large production area, making them an excellent choice for customers that have limited space.

The VibroCast technology can also help customers improve their work productivity, as only one operator is required on the vibroforming machine for the handling and one worker to provide the concrete with forklift. In addition, the machines are designed for easy maintenance and transport.

*Imer Oru Far East welcomes potential distributors for the Asian market. Interested parties may contact the company directly via website here.

Note: This story has also been published in the May/Jun 2025 issue of SEAC (with more images). Click here to read online or here to download the PDF file (pages 52-54).
